Inverter

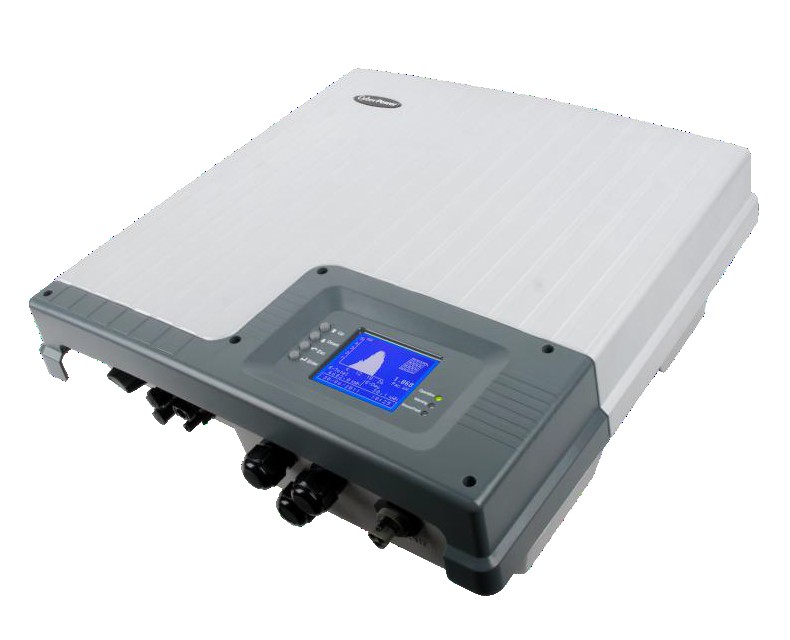

The Grid-Tied PV Inverter is designed to convert solar electric (photovoltaic or PV) power into utility-grade electricity that can be fed into commercial grid or used by local/off-grid electrical network. The transformerless design not only demonstrates its market-leading safety performance but ensures users can be benefited from the maximum 97.8% conversion efficiency. With the built-in MPPT tracker, the algorithm creates a nearly-perfect 99.9% tracking efficiency to ensure maximum energy yields so that you won't miss a single drop on every solar power generated!

APPLICATIONS

  • Grid-tied PV System
  • Residential / commercial Application

SERIES FEATURES

  • High Efficiency up to 97.8%
  • Maximum Power Point Tracking Technology
  • Transformerless Design
  • Natural Cooling Convection
  • Adjustable Reactive Power(0.8 Lag - 0.8 Lead)
  • Wide Operation Range
  • Complete LED / LCD indication for operating status
  • Metering and Data Logging
  • IP65 Compliant for Outdoor Application

Multi-language LCD Display

The innovative front panel displays vital information including: watiage, voltage, frequency, status and events. Intuitive graphical with 10 years data-logger and real-time clock ensures a better user experience for monitoring.

TECHNICAL SPECIFICATION

ModelCPSPV4000ETLCPSPV5000ETL
Solar input (DC)
Maximum input voltage900V
Input MPPT voltage range310~750V
Input operation voltage range250~900V
Maximum input current13.5 A17 A
Nominal input power4320 W5400 W
Efficiency MPP tracker (static/dynamic)99.9% / 99.8%
Number of MPPT trackers1
Number of string inputs2
Grid output (AC)
Mains output voltage range184Vac to 276Vac single phase (According to country seting)
Maximum output current20 A24 A
Rated output power4000 W5000 W/4600W (Germany)
Maximum apparent output power4150 VA5150 VA/4600VA (Germany)
Mains output frequency50 / 60 Hz (± 5%)
Output power factor0.8 over-excited ~ 0.8 under-excited
Output current THDLess than 3%
Performance
Maximum efficiency97.60%97.80%
European efficiency97.00%97.20%
Power feed (start-up) powerLess than 10 Watt
Night time consumptionLess than 1 Watt
Mechanical protection degreeIP65 (AC connector IP67)
TopologyTransformer-less
Environment
Operating temperature-20℃ to 60℃
Storage temperature-20℃ to 70℃
Relative humidityMaximum 100% (non-condensing)
Maximum operating altitude2000m
Cooling methodNatural convection
Other
DisplayMulti-language graphical display
CommunicationRS485, Ethernet (optional), WIFI (optional)
Data log10 years data-logger
StandardSafety: IEC 62109
Grid interface: VDE-AR-N 4105 / VDE0126-1 / UTE-C15-712-1
EMC: EN61000-6-2 / EN61000-6-3 / EN61000-3-2 / EN61000-3-3 / EN61000-3-11 / EN61000-3-12
Warranty5 years standard (option over 10 years)
#All specifications are subject to change without notice. ©2015 Cyber Power Systems. All Trademarks are the property of their owners.
